POE Combiner Splitter Adapter, Run 2 IP Cameras on 1 Cable,

Product Overview

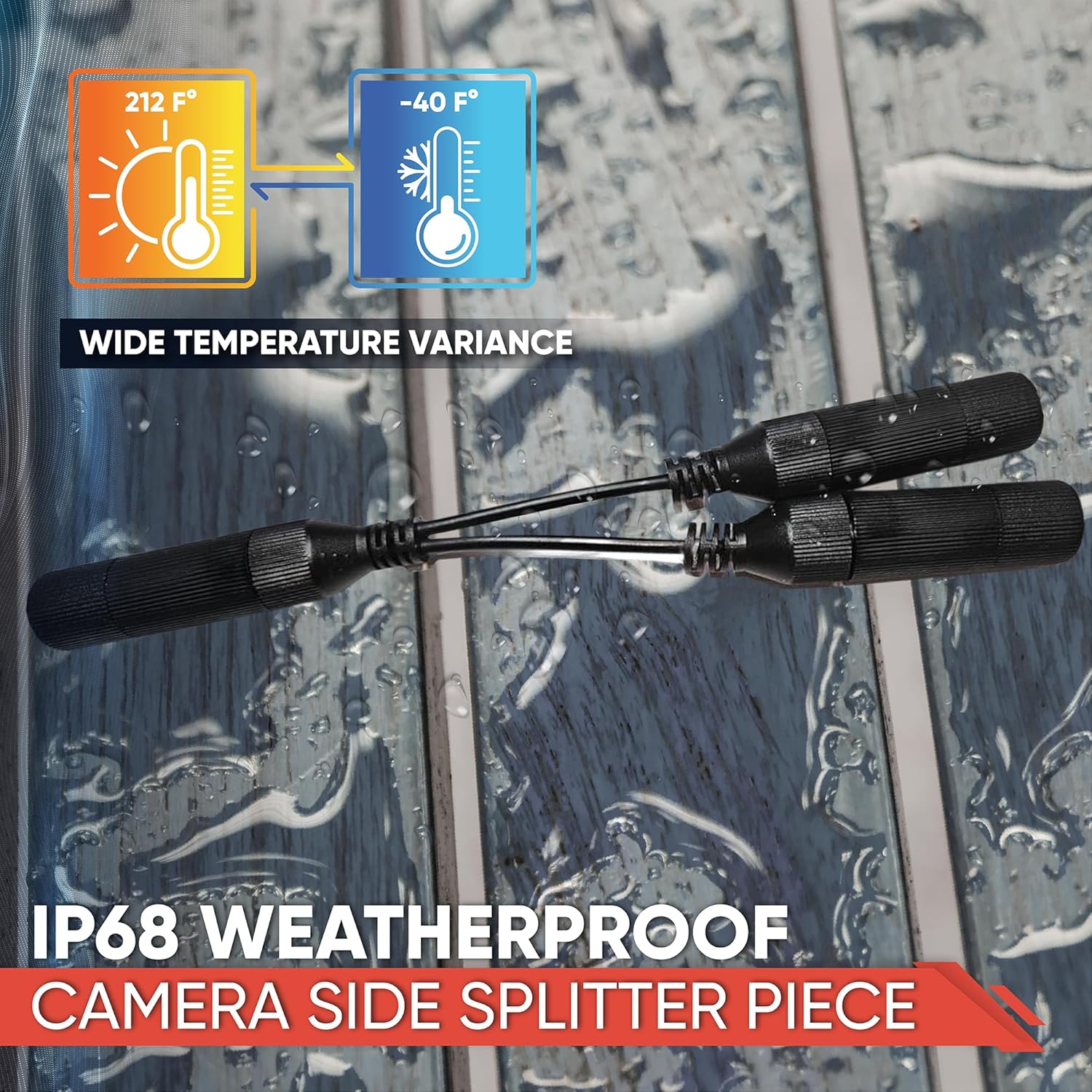

The POE Combiner Splitter Adapter is a compact and efficient solution designed to extend Power over Ethernet (POE) connectivity for two IP cameras using a single cable. This device consists of a combiner unit, which connects to two open ports on a POE switch or POE NVR, and a splitter unit, which receives power and data through one long cable to feed both cameras. Ideal for installations where cameras are located close together but far from available network ports, this adapter helps reduce installation complexity and material costs by minimizing the number of cables required.

Key Features

• Dual-Camera Support via One Cable: Enables you to connect two IP cameras using a single Ethernet cable, significantly simplifying cable management and reducing the need for multiple runs from a central POE source.
• Works with All POE Devices: Compatible with standard POE switches, POE NVRs, and POE-enabled cameras, ensuring broad usability across existing surveillance systems without requiring additional hardware.
• Mode A and Mode B POE Compatible: Supports both POE modes, allowing flexibility in deployment whether your devices use passive or standard IEEE 802.3af/at POE standards.
• Easy Installation: Simply plug the combiner unit into two available POE ports on your switch or NVR, run a single cable to the camera location, and connect the splitter to both cameras. No configuration or external power sources needed.
• Saves Time and Material Costs: By consolidating two connections into one cable, this adapter reduces labor time and lowers the cost of cabling materials—especially beneficial in large-scale or hard-to-access installations.

Technical Specifications

• Input: Two POE ports (via combiner unit)
• Output: One Ethernet cable carrying power and data to two cameras (via splitter unit)
• POE Compatibility: Mode A (Data+Power) and Mode B (Power Only) support
• Compatible Devices: POE switches, POE NVRs, and POE cameras
• No additional power supply required
• Plug-and-play installation with no configuration necessary

Benefits & Use Cases

This POE Combiner Splitter Adapter is particularly useful in scenarios where two IP cameras are installed near each other but distant from a central network point. For example, in a warehouse with two entrances spaced apart, or in an office building with cameras mounted in adjacent corners of a hallway. Instead of running two separate cables from the main switch, users can deploy one longer cable using this adapter, streamlining the installation process.

The adapter is especially valuable for installers seeking to cut down on cabling expenses and save time during setup. It also minimizes clutter and potential points of failure by reducing the total number of physical connections in the field. Since it operates passively and requires no software configuration, it integrates seamlessly into existing infrastructure without disruption.

Important Notes

• Ensure that both input ports on the POE switch or NVR are active and supplying sufficient power for both cameras combined.
• The maximum distance of the single output cable depends on standard POE transmission limits; typical effective range is up to 100 meters (328 feet).
• The package includes one combiner unit and one splitter unit—cameras and cables are not included.
• Not suitable for connecting more than two cameras unless paired with additional adapters or hubs.
• Verify compatibility with your specific camera models and POE equipment before installation.
